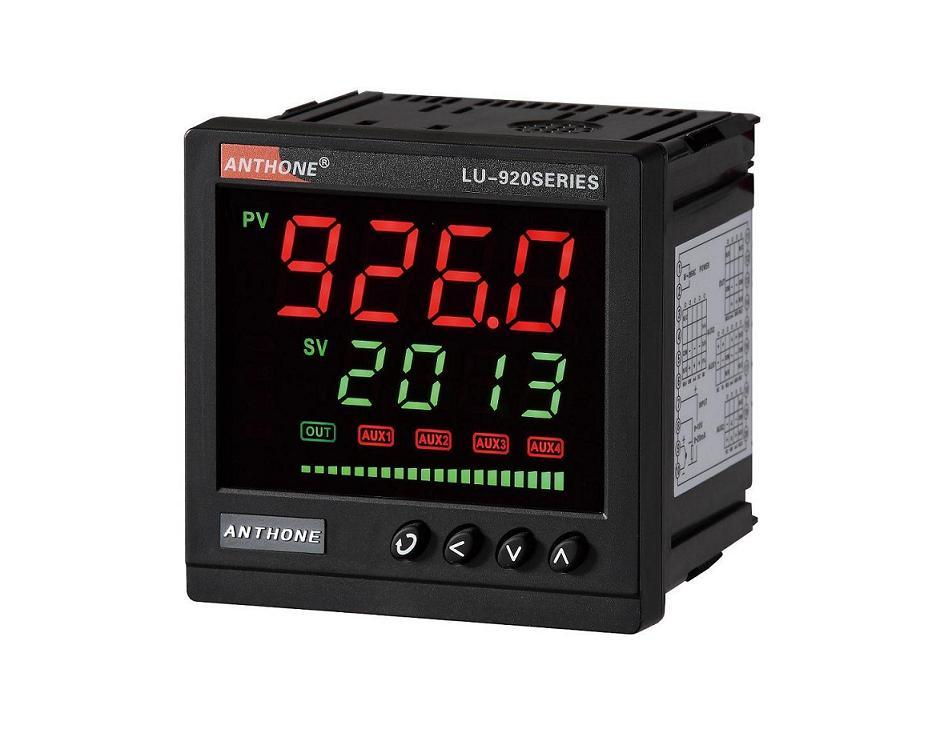

LU-927M memory type intelligent PID position proportion controller is mainly used for kiln stove temperature control and widely used in ceramics and glass industry.

It can drive the actuator directly without using the servo amplifier.



It is compatible with a variety of valve feedback signals,including standard voltage,standard current,3-wire potentiometer,etc..



The virtual valve feedback function can automatically track the valve status just by setting the relevant parameters and eliminate the inconvenient connection of feedback signal.



It has various control methods and the intelligent control adopts the combined control method of fuzzy theory and traditional PID,which enable the control process quick respond,small over modulation and high precision in stable state,especially has obvious effect on the large pure lag object which is difficult to be controlled by traditional PID.The control algorithm has auto-tuning function.



It has rich control methods of set value,it has two setpoint registers,and can switch between external setpoint and event trigger setpoint.



It has valve dead zone,control dead zone function and the dead zone range can be set by register.



It can achieve the differential algorithm alarm or transform function by setting the parameters of alarm or transform source.



2. Main Technical Parameters



●Accuracy: ±(0.2%F.S.+1)digit

●Resolution: 1℃ , 0.1℃

●Control method:ON/OFF,manual control,PID with auto-tuning

●Display: double 4-bit LED +light pillar

●Input type:

T.C: S(-50~1768℃),R(-50~1768℃),B(250~1820℃),

K(-200~1372℃),N(-200~1300℃),E(-200~1000℃),

J(-200~1200℃), T(-200~400℃).

RTD:Pt100(-200~800℃),Cu50(-50~150℃),Cu100(-50~150℃)

standard mV signal: 0-100mV

standard resister signal: 0-500 ohm

standard voltage signal: 0-10V,0-5V,1-5V,self-defined 0-10V

standard current signal: 4-20mA,0-10mA,self-defined 0-20mA

●Output modules:

J8:relay output (250VAC/3A,normally open+normally close)

J9:relay output (250VAC/0.8A,normally open+normally close)

J7:double relay output (250VAC/0.8A,normally open)

J7:clockwise/anticlockwise rotating relay output(250VAC/0.8A,normally open)

T7: clockwise/anticlockwise rotating silicon-controlled contactless output

I5: control / transform current output

U5: control / transform voltage output

V6/V7: 12V/24V 50mA sensor power supply

S2: RS232 communication

S4: RS485 communication

D1: switch signal input

M1: self-defined setting

M2: potentiometer+virtual valve

M3: 4~20mA+virtual valve

M4: 0~10mA+virtual valve

M5: 1~5V+virtual valve

M6: 0~10V+virtual valve

●T.C cold Junction compensation error: ±1℃

●T.C.break or over range: display Sb

●Sampling period: 0.5 second

●Power voltage: 85~265VAC

●Power consumption: <4W
