LU-924M memory type intelligent controller is specially designed to connect with liquid level,pressure and temperature sensor and transmitter to constitute all kinds of measuring range and specification measuring control system for liquid level,pressure,temperature,etc..



It can transform out standard analogue signals,and the transform data source,transform type and transform range can be set freely.

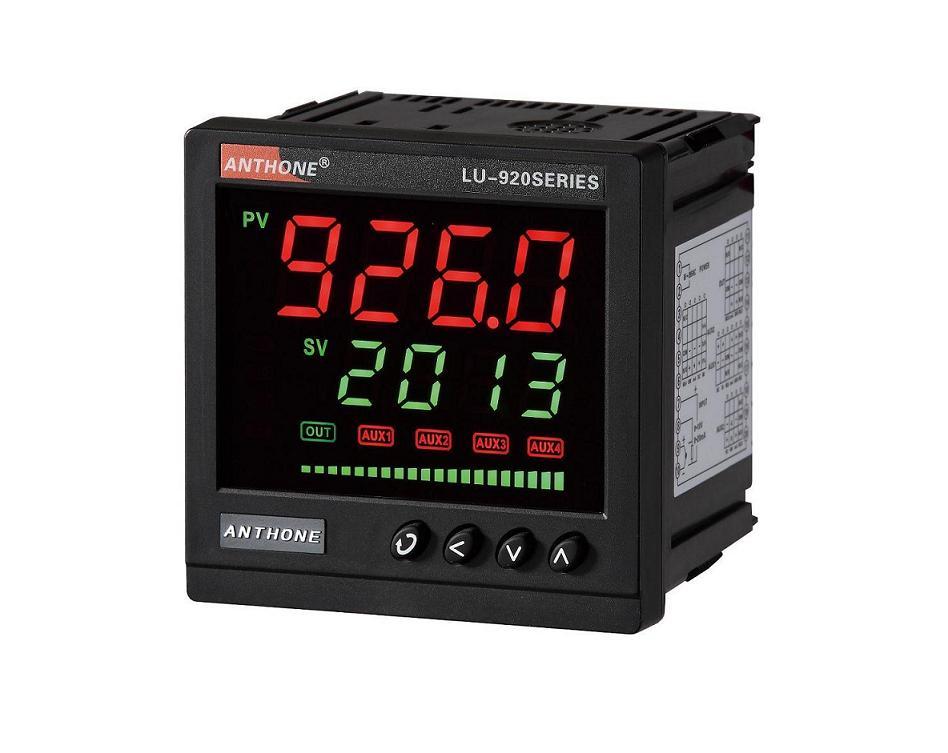

The display adopts double four bright LED numerical code tube plus 20 segments light pillar which corresponds to percentage of transform output or measured value.





2. Main Technical Parameters



●Accuracy: ±(0.2%F.S.+1)digit

●Resolution: 1℃ , 0.1℃

●Control method: ON/OFF

●Display: double 4-bit LED +light pillar

●Input type:

T.C: S(-50~1768℃),R(-50~1768℃),B(250~1820℃),

K(-200~1372℃),N(-200~1300℃),E(-200~1000℃),

J(-200~1200℃), T(-200~400℃).

RTD:Pt100(-200~800℃),Cu50(-50~150℃),Cu100(-50~150℃)

standard mV signal: 0-100mV

standard resister signal: 0-500 ohm

standard voltage signal: 0-10V,0-5V,1-5V,self-defined 0-10V

standard current signal: 4-20mA,0-10mA,self-defined 0-20mA

●Output modules:

J5: relay output (250VAC/3A,normally open)

J6: relay output (250VAC/0.8A,normally open)

J8:relay output (250VAC/3A,normally open+normally close)

J9:relay output (250VAC/0.8A,normally open+normally close)

J7:double relay output (250VAC/0.8A,normally open)

I5: control / transform current output

U5: control / transform voltage output

V6/V7: 12V/24V 50mA sensor power supply

S2: RS232 communication

S4: RS485 communication

●T.C cold Junction compensation error: ±1℃

●T.C.break or over range: display Sb

●Sampling period: 0.5 second

●Power voltage: 85~265VAC

●Power consumption: <4W
